Multi-Positional Lift Trolley

Multi-Positional 200 Kg Lift Trolley

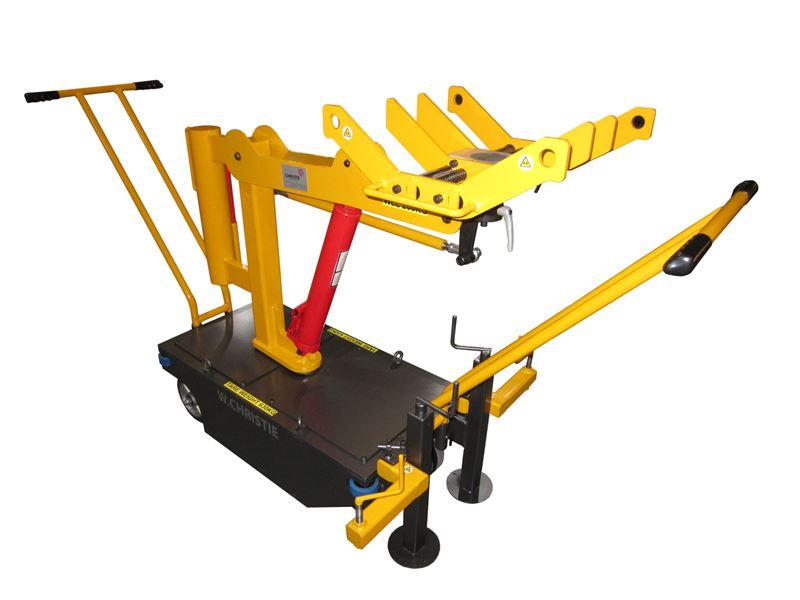

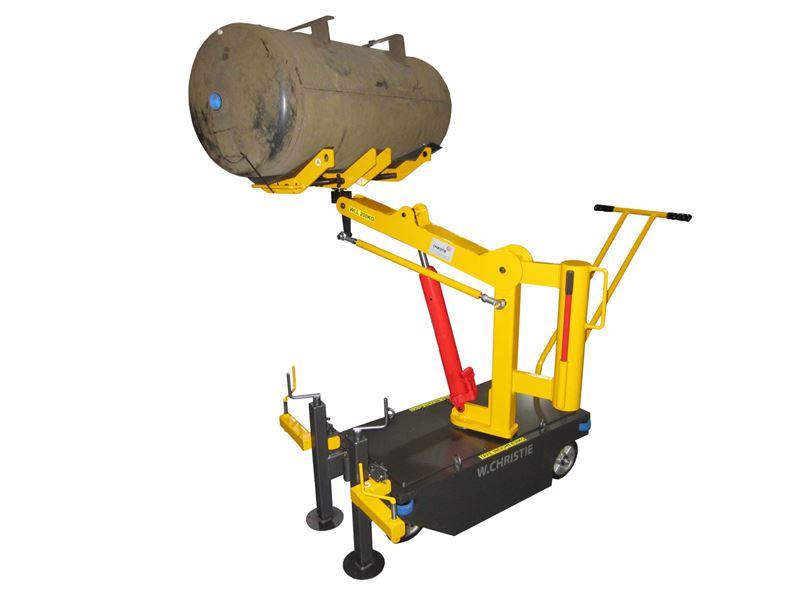

The Multi-Positional Lift Trolley is a device designed for supporting and maneuvering air receivers during their removal and installation on the underside of trains. The system consists of an adjustable cradle which holds the air receiver, combined with a hydraulic rotating jib mounted on a trolley system. The elevation range of the lift is 774 mm.

This particular system is designed for air receivers up to 1650 mm in length,
500 mm in diameter, and weighing up to 200 Kg.

Trolley lift systems can be designed for handling your particular application. Please contact us with your specific requirements.
