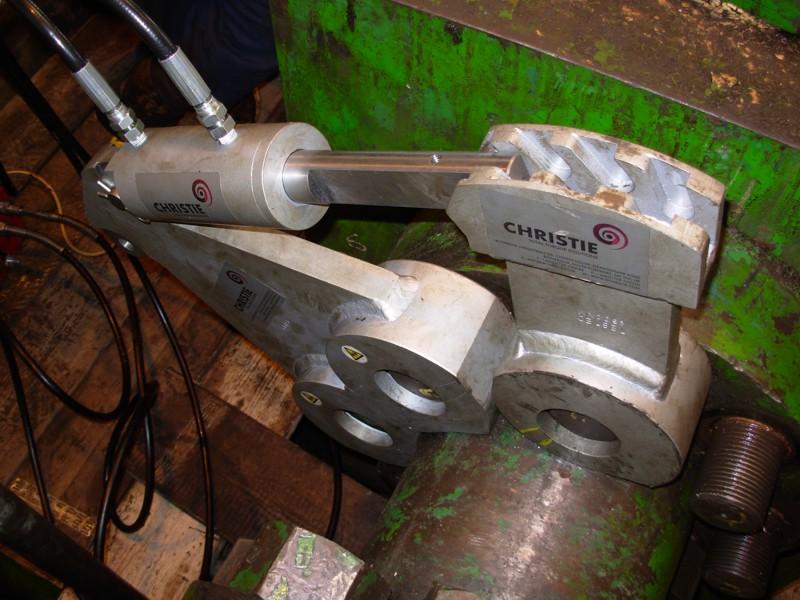

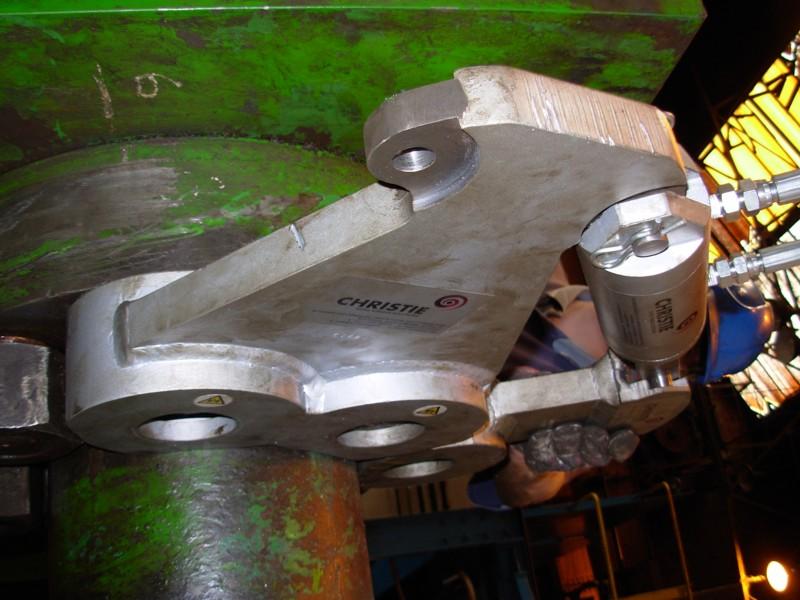

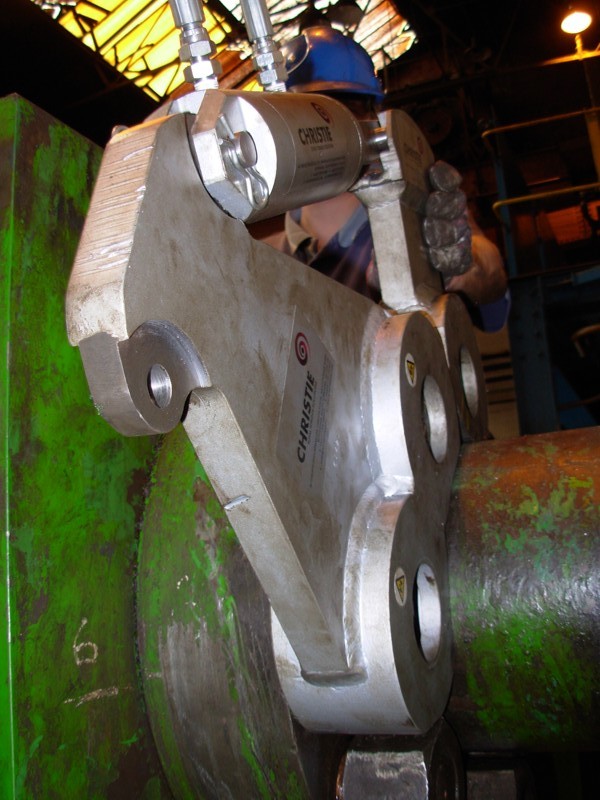

Forging Press Valve Housing Low Profile Tool

Application: Removal of flange linkage on forging press valve housing

Problem:

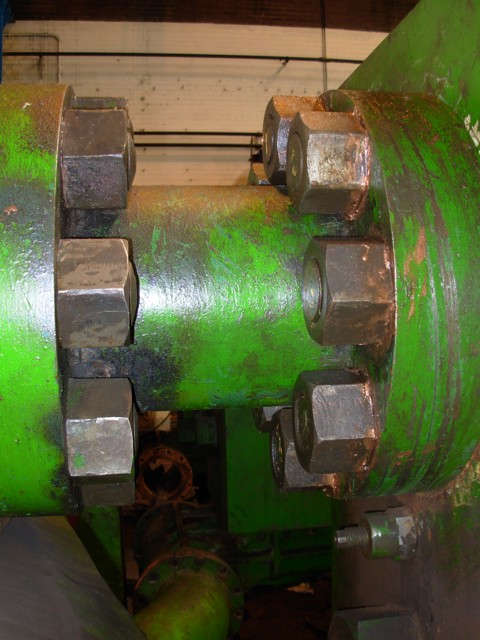

• Very limited clearance between hexagon points and pipework
• Limited overall access
• Manual tooling method is inefficient and unsafe

Solution:

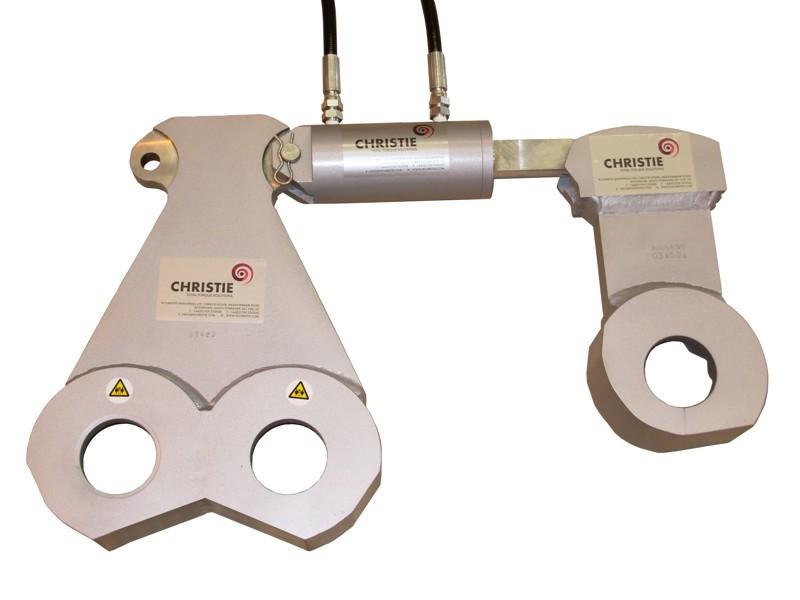

• Bespoke Christie Low Profile LP7 Hydraulic Tool capable of 9,500 Nm output

Features:

• Thin wall design for precision fit on application
• Direct fit onto flange application
• Reaction (static back anchors) and hexagon drive are capped for strength and stability

Benefits:

• Torque accurate
• Safe
• Ease of use and quicker than manual method

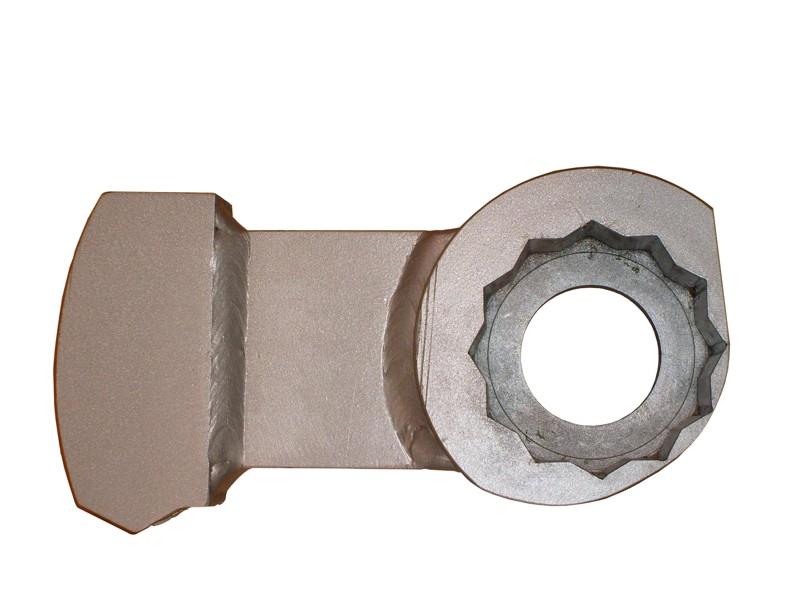

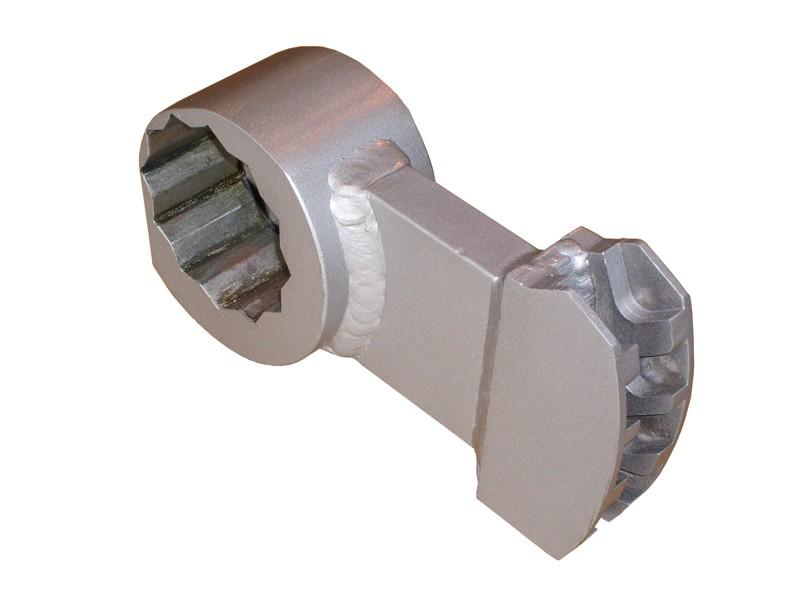

• Interchangeable hexagon drive head gives potential for use on other applications
