Hydraulic Press System

Industry: Plant Manufacturing

Application:

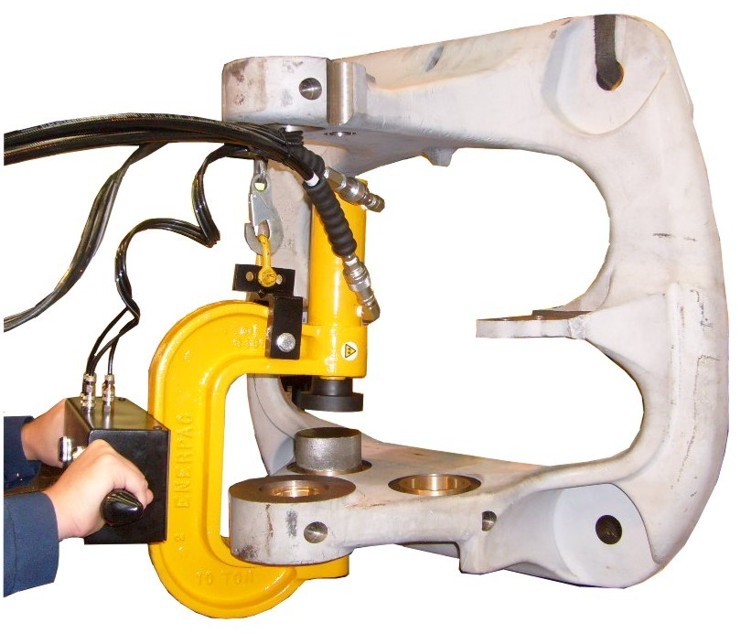

• Pressing of bearings into a king post casting

Problem:

• Replacement of existing, dated system, with modifications and improvements
• Bronze bearings require pressing into the casting with precision
• Reinforcement lugs on the casting are an obstruction

Solution:

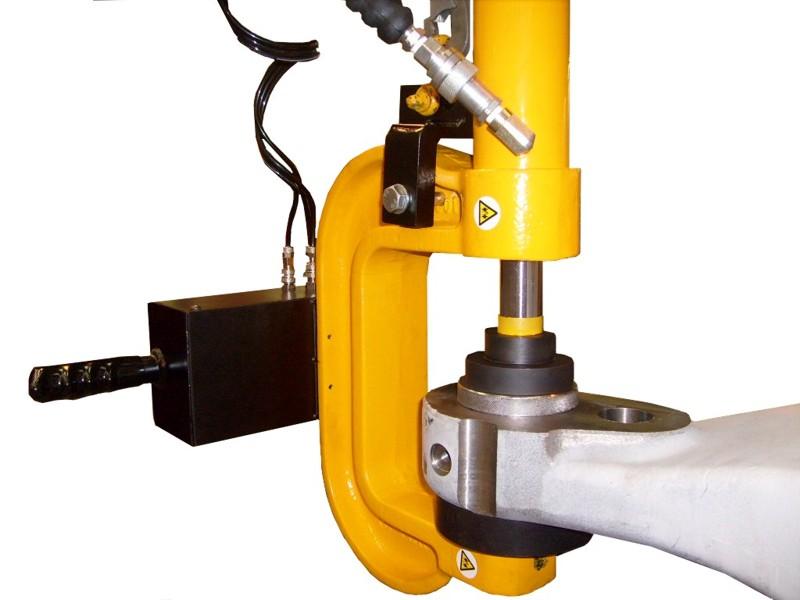

• Push plates milled to the contour of the casting for exact fit

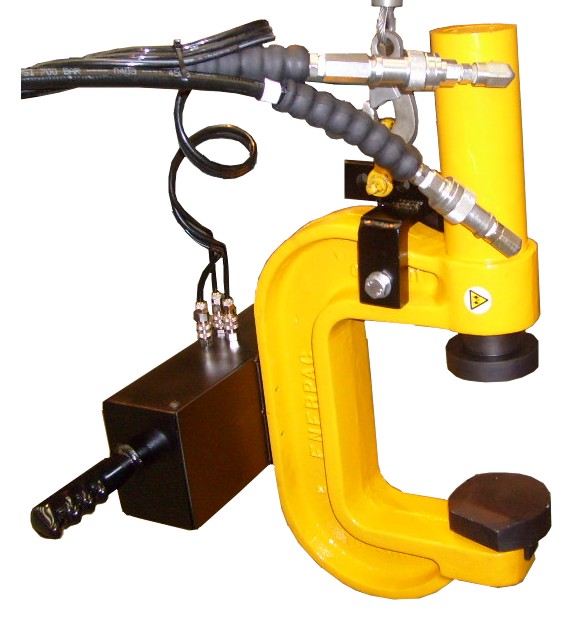

• Custom made 10 ton hydraulic cylinder – shorter body required for the unit to fit within the king post

Features:

• Location tab on the push plate to prevent rotation and ensure correct position
• Bespoke cylinder

Benefits:

• Works with existing pump system
• Double acting cylinder for speed of operation
• Robust construction
• Self-contained – requires no additional equipment
• Unit is self-supported on a hoist, meaning operator handling is limited to manoeuvring

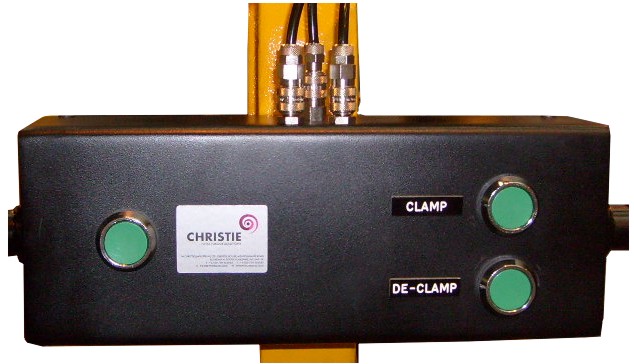

• Two hands are required for operating the unit - the spacing of the handles and the 2 button operation ensures the unit is operated safely
