Load Cell Reaction Platform

Industry:  Manufacturing

Application:

• Load cell assembly

Problem:

• Fastening cap screws accurately and consistently on a load cell without damaging the load cell

Solution:

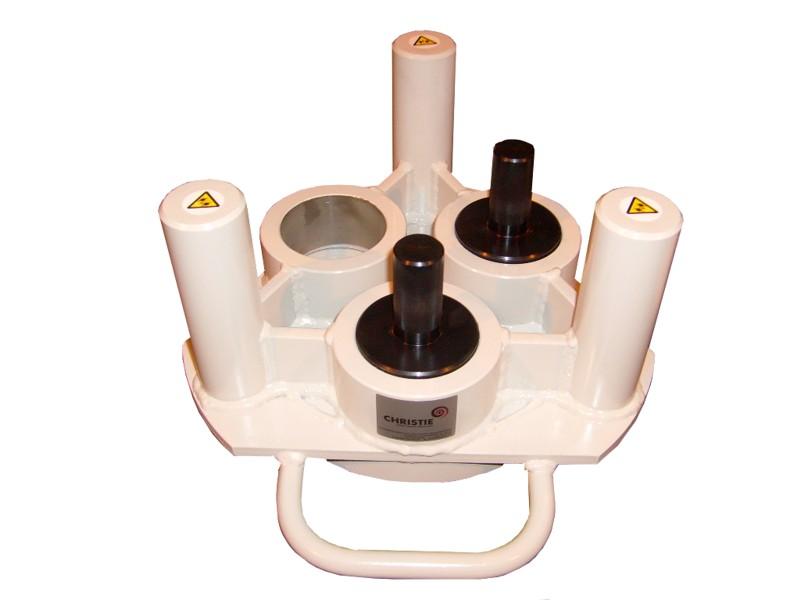

• Reaction platform with 3 machine bosses & 3 reaction posts

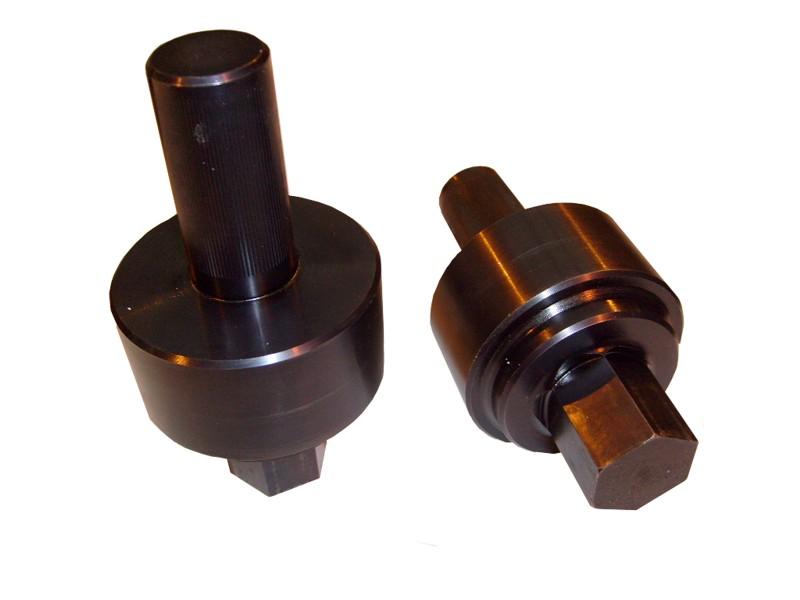

• Hexagon pegs for locating on the cap screws (prevents reaction on load cell)
• Interchangeable hexagonal pegs for different size cap screws

Features:

• Lifting handle

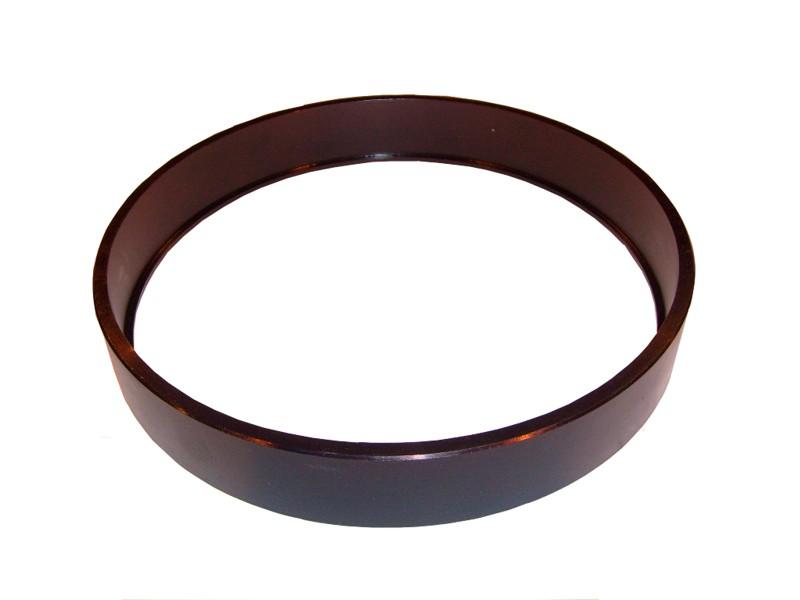

• Thick wall sleeve allows use on multiple sizes of load cells (optional thin wall sleeve for use on other sizes of load cell)

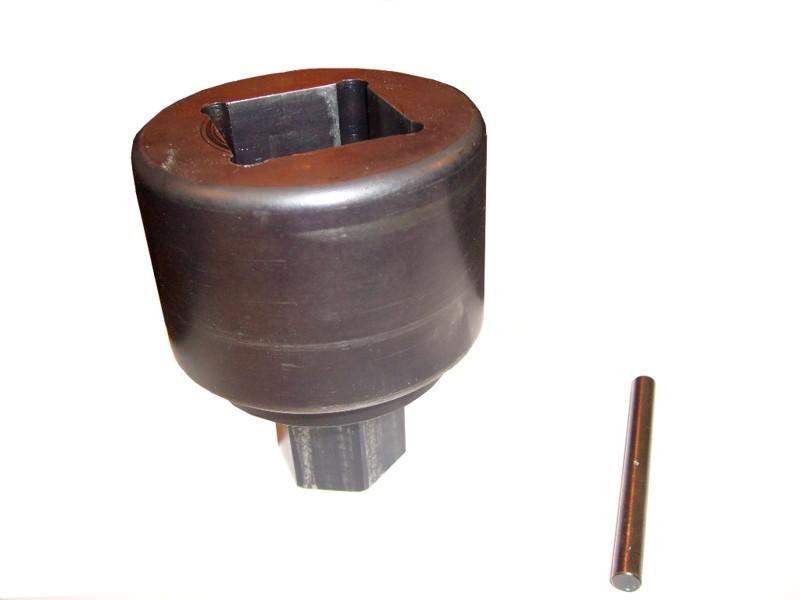

• Square drive sockets with hexagon insert bits

Benefits:

• Design ensures stability during use
• Prevents damage by not reacting on the load cell itself
• Durability through robust construction
• Cost saving - one tool is suitable for 3 sizes of load cell
• Weight less than 25kgs - manual handling by one person

Tooling:

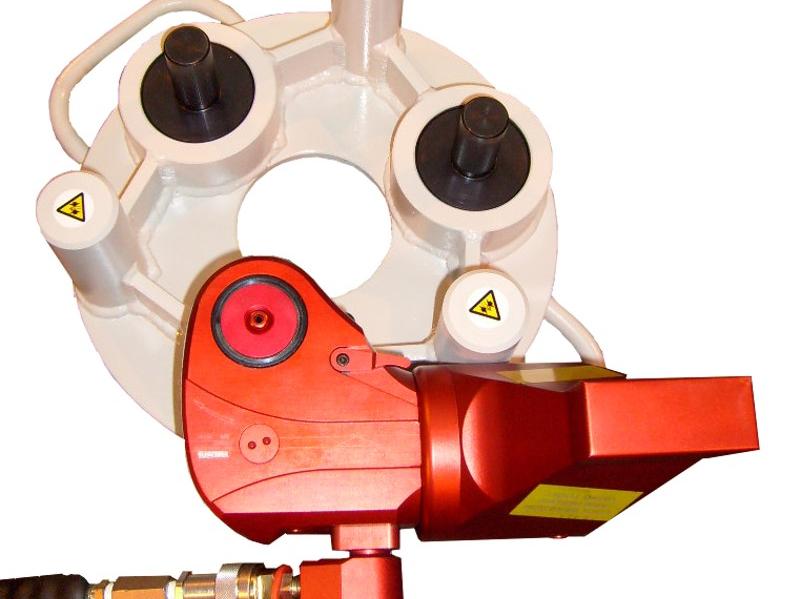

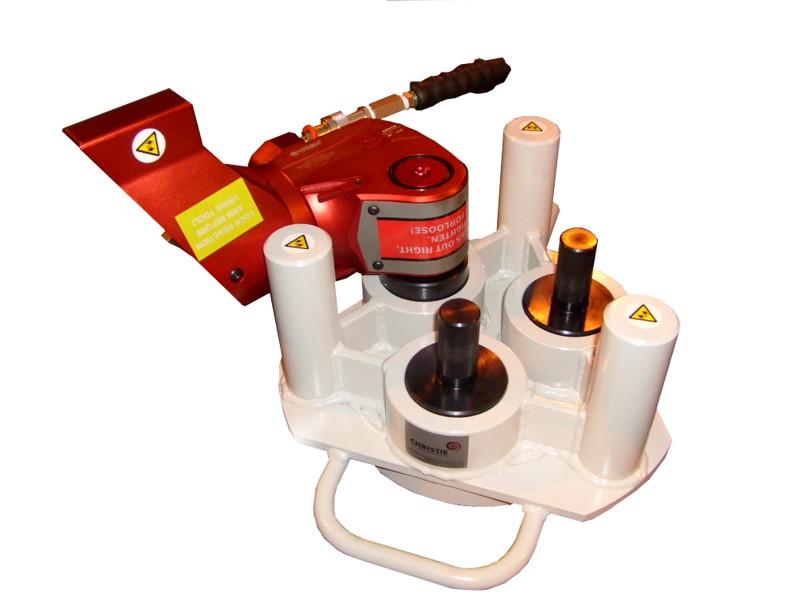

• 5WHTW Hydraulic Torque Wrench
• Hydraulic power pack
